Description

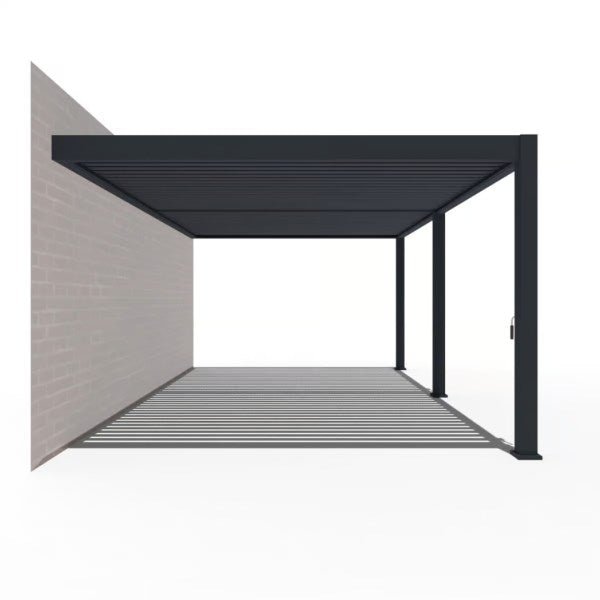

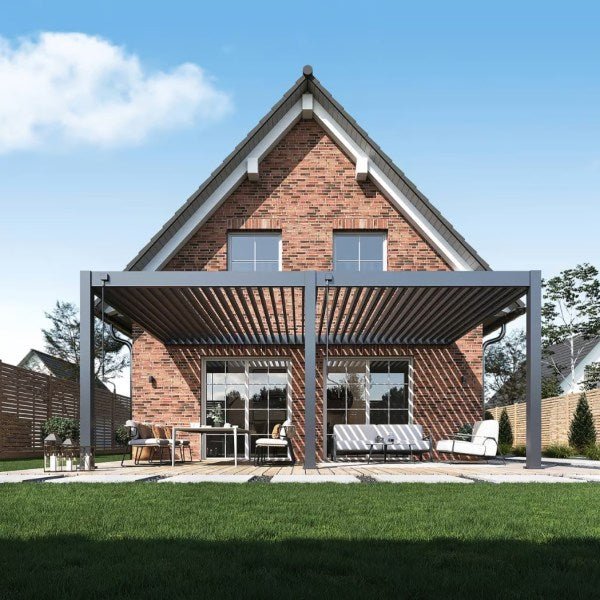

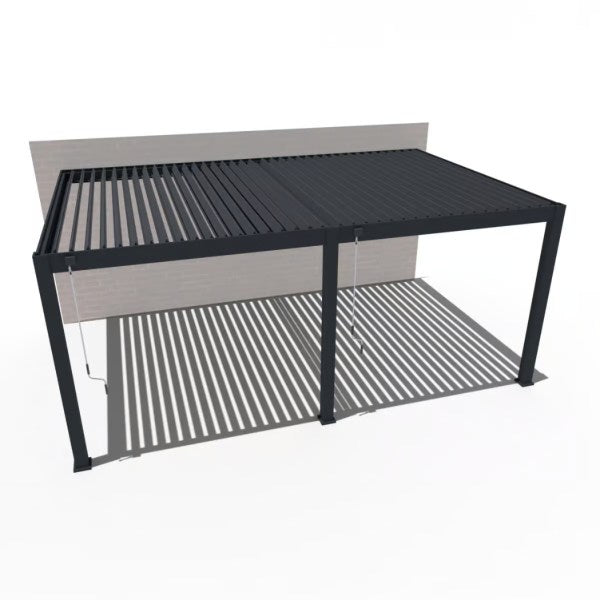

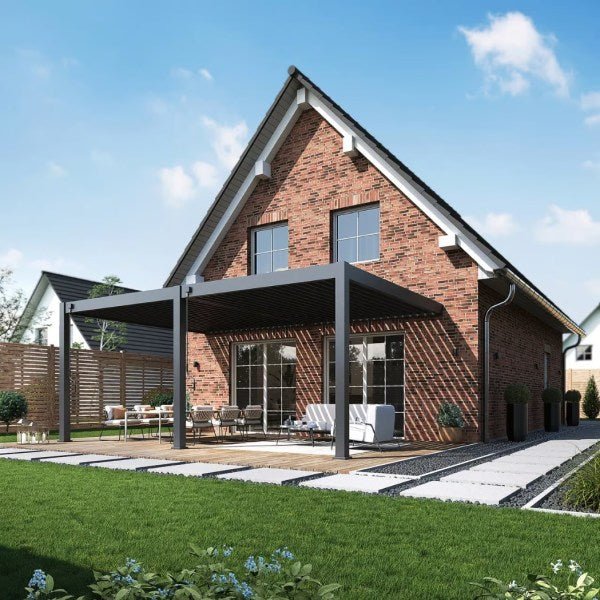

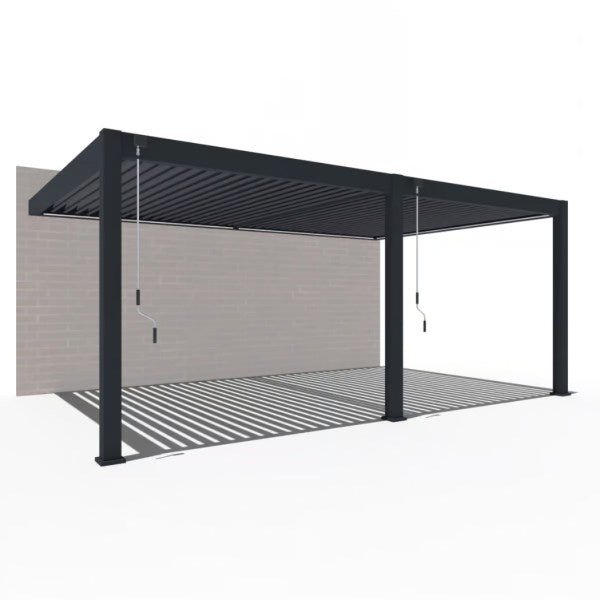

Willow Wall Pergola Deluxe Plus 4x6m Anthracite
The high-quality wall pergola/adjacent pavilion | Garden pergola patio roofing
Top quality thanks to aluminum structure
- Durable, weather-resistant and rust-proof
- Sturdy posts and slats made of aluminum
- Environmentally friendly and fully recyclable
- Solid post dimensions of 136 x 136 mm
- Solid supports of 195 x 90 mm
- Robust slat dimensions of 169 x 38 mm
- Robust aluminum slats, double-walled, 40% stronger
- Notes: Smaller elements such as screws are made of stainless steel for added durability

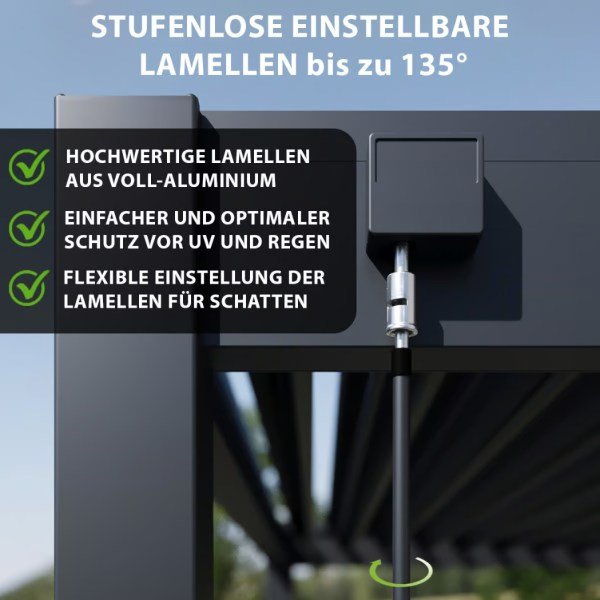

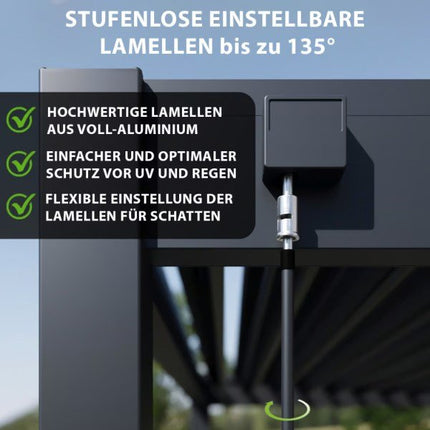

Manually adjustable slats for optimal light regulation
- Continuous adjustment of the slat angle via hand crank up to 135°
- Quick adjustment of light incidence and shadow formation.
- Effective UV protection
- Adjustable ventilation through the roof
- Protection from light rain when the slats are fully closed
- Integrated gutter for controlled water drainage
Effective rainwater management
Rainwater runs through the slatted channels to the beams and is drained through the posts
Drainage holes on the underside of the posts ensure controlled water drainage
Recommendation for the integration of a drainage channel in the floor covering
Regular cleaning of drains and gutters from leaves and dirt is required
Assembly
- The pavilion can be assembled by two people.
- We recommend having two additional people help with the installation of the slats and cross braces.
- Required tools/equipment: Cordless screwdriver and two ladders are required.
- Screws and additional mounting material are included in delivery.
- Pre-drilled holes and precise rails facilitate the assembly process.
Wall mounting
-
When installing 20cm of insulation on the outside of a wall, it is important to know the wall thickness.
- Recommended impact anchor size is 30-35 cm (20 cm insulation + 10-15 cm concrete), so accurate measuring is required.
- Use a precise drill bit for impact anchors to drill an accurate hole and ensure the anchor fits properly.
- A hammer drill is recommended for hard concrete material, preferably with an SDS-plus connection for SDS-plus drills.
- For drills with quick-release drill heads, concrete drill bits with a round shank can be used.
- To use impact dowels, drill a hole of the appropriate diameter, insert the dowel through the attachment into the hole and hammer in the screws.
Recommendations and maintenance
- We recommend cleaning the pergola regularly with water, dish soap, and a soft cloth. A cleaning hook with a brush is included to remove leaves and dirt from the drainage holes.
Care for creaks
- In most cases, it is not necessary to lubricate the moving parts of the pergola, but in case of creaking, it is recommended to use silicone spray.
Winter care
- When the temperature drops below 0°C, it is recommended to use the pergola less frequently to extend its lifespan.
- In winter, the slats must be placed in a vertical (open) position. If the roof is closed during snowfall and not checked regularly, there is a risk that the slats will deform and the roof may leak.
Integrated water drainage system
- We recommend installing the product horizontally. Since the drain is located in all four legs, drainage will still function properly even if the installation isn't 100% level. We recommend installing a drainage channel in the paving. However, depending on the surrounding vegetation, the drain and channels may need to be cleared of leaves.
FAQ
1. How are the slats adjusted?
The high-quality aluminum slats can be conveniently and continuously adjusted. By turning a crank, you can synchronously change the angle of the slats to individually adjust the amount of light entering. When the slats are fully closed, the pergola offers protection from sun and light rain.
2. How is the pergola installed?
Installation can be completed by two people. We recommend having two additional people on hand to install the slats and cross braces. The required tools are a cordless screwdriver and two ladders; the necessary hardware is included. Precise pre-drilled holes and precisely fitting rails facilitate installation.
3. What should be considered when installing 20cm of insulation on the outside of a wall?
It is important to know the wall thickness. The recommended anchor size is 30-35 cm (20 cm insulation plus 10-15 cm concrete).
therefore accurate measurement is required.
4. Which foundation is recommended?
For a stable foundation, a concrete foundation is recommended, which should have a minimum surface area of 22×22 cm.
5. What advantages do the new slats offer?
The new slats require only 2 screws per end cap for installation and have improved water drainage properties thanks to an optimized rounding.
6. Is the pergola also suitable for heavy rain?
Tested to withstand up to 17L/m2 per hour, our pergolas are ideal for light rain and provide good protection in these situations. However, in heavy rain, there's a chance the posts will absorb too much water, causing the water to run over the pergola roof.
7. What is the snow load capacity of the pergola?
The pergola has been tested up to a snow load of 80 kg per square meter.
Please open the slats when it snows to avoid bending or damage.
8. What should I keep in mind when using the pergola in strong winds?
In strong winds, the slats should be opened. The pergola is tested to withstand wind force 9 on the Beaufort scale, which corresponds to wind speeds of up to 100 km/h (a severe storm).
